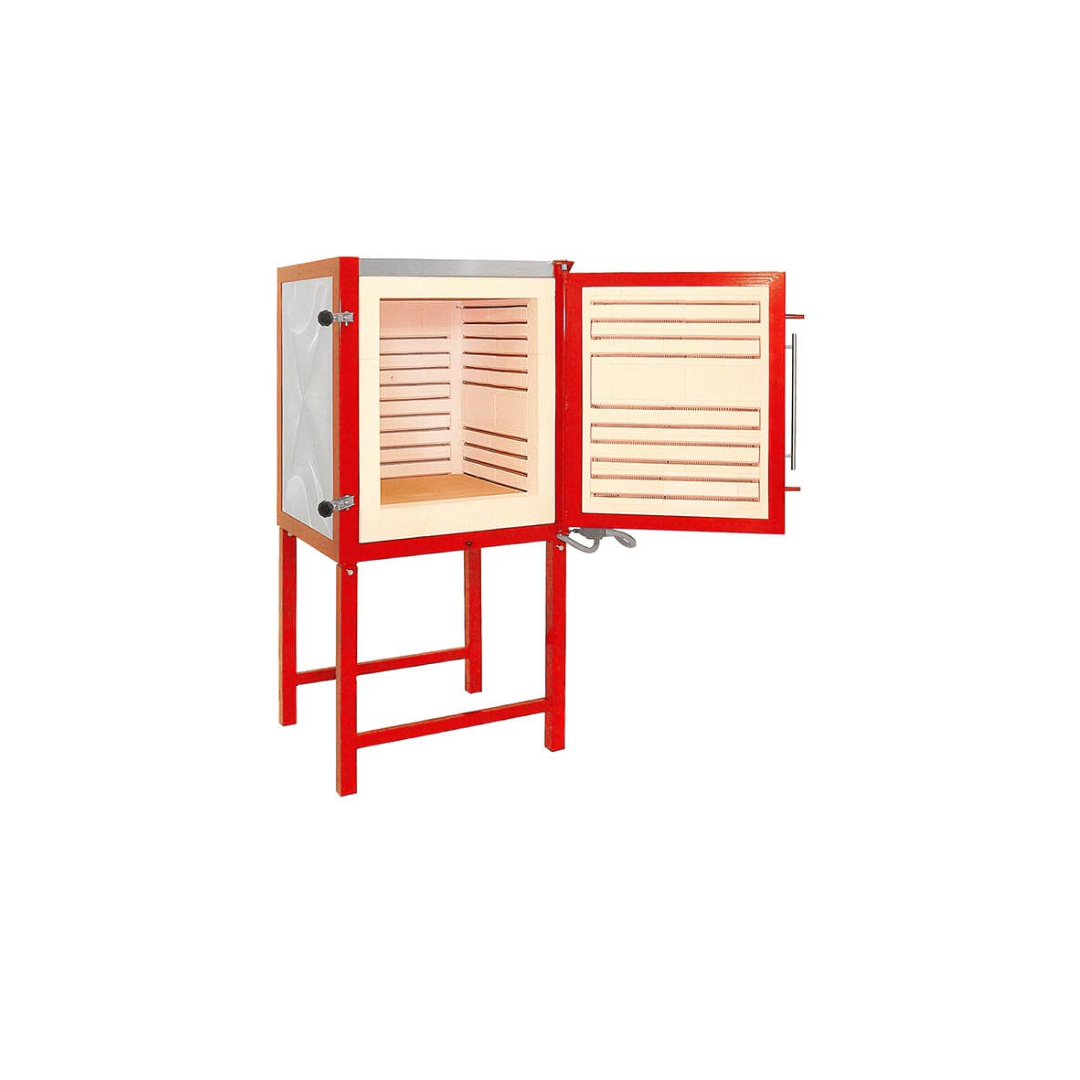

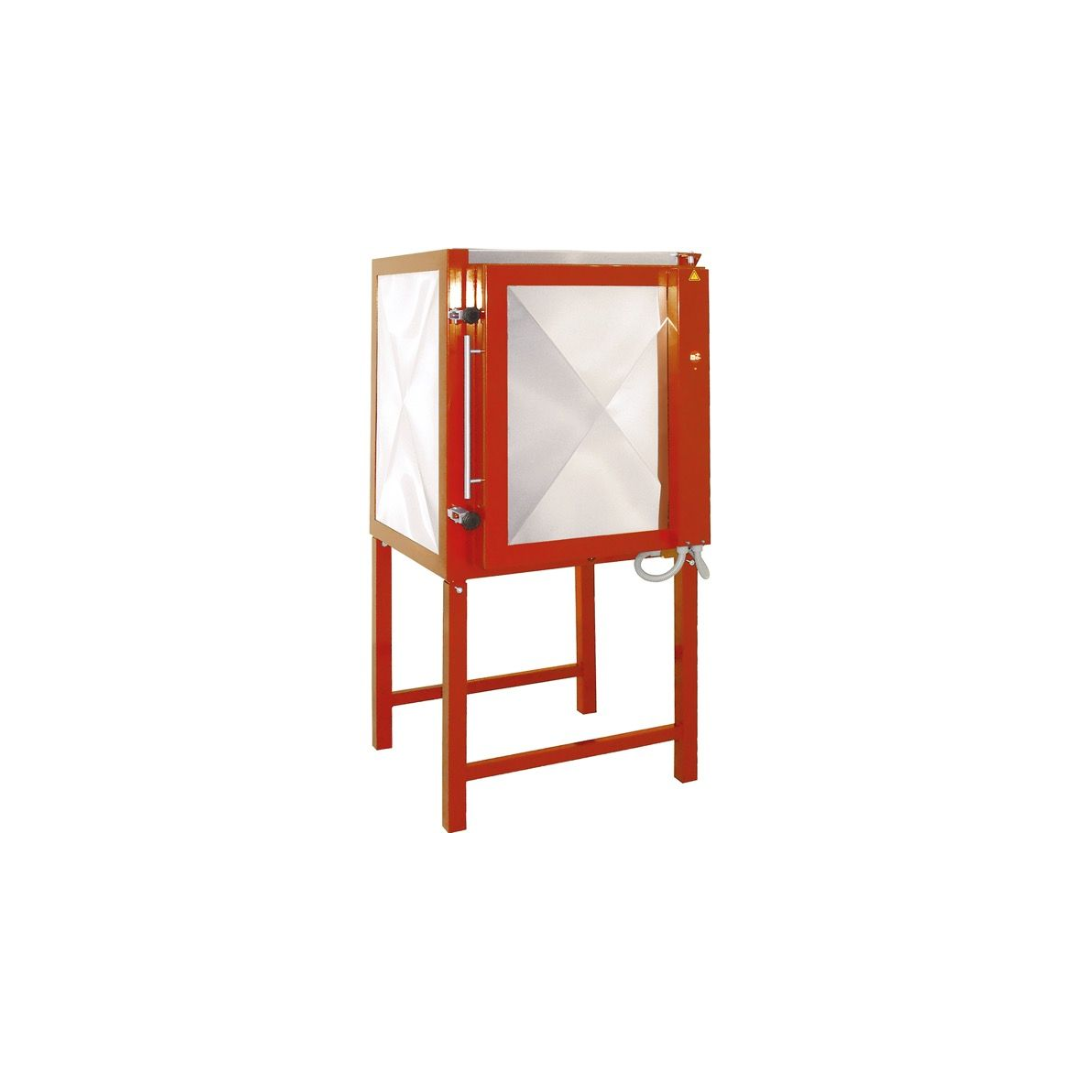

Kittec CL Classic-Line front-loading kiln, 46 to 610 liters

KITTEC CL Classic-Line front-loading kilns in 16 versions from 46 to 610 liters

The KITTEC CL Classic-Line comprises electric front-loading kilns for solid, everyday use in workshops and studios. This series was developed for ceramicists who appreciate the loading convenience of a front-loader and wish to choose between compact studio models and large-capacity kilns for regular workshop operation. With firing chamber sizes from 46 to 610 liters, the CL series covers a very broad spectrum – from the compact entry-level model to the large-format kiln for schools, workshops, and professional studios.

Characteristic of the CL series is the heating via heating elements embedded in grooved bricks, which are well protected within the wall structure. There is a choice between three-sided (-3) and five-sided (-5) heated variants: the -3 models heat from the sides and bottom, while the -5 models additionally heat via the rear wall and door, thus ensuring even more uniform temperature distribution within the firing chamber. All models reach up to 1,320 °C, making them suitable for bisque and glaze firings, as well as for stoneware and porcelain.

Stability and durability are ensured by the triple-layer insulation, the SiC ceiling plate, the seamless mortar-free brickwork, and stainless steel panels on the sides, door, and lintel. The powder-coated steel housing is available in six colors. The standard equipment comes with the TC 75 controller.

How do the KITTEC CL models differ within the series?

The most important difference within the CL series, beyond the firing chamber volume, lies primarily in the heating method. The -3 models (CL 43-3 to CL 600-3) provide three-sided heating from the sides and bottom and are the more economical choice for regular workshop use. The -5 models (CL 100-5 to CL 600-5) additionally heat via the rear wall and door and are the right choice when a particularly homogeneous temperature distribution is required – for example, with large loads or demanding glazes.

The smaller models CL 43-3 and CL 60-3 operate on a 230-volt connection and are suitable for compact studios and as an entry into the Classic-Line. From the CL 100 upwards, both -3 and -5 variants are available with a 400-volt connection, allowing workshops and schools to choose between greater cost-efficiency or increased firing homogeneity, depending on their needs. The large CL 440 and CL 600 models offer ample capacity of up to 610 liters for professional continuous operation.

The CL Classic-Line by KITTEC is available in 16 versions:

• CL 43-3 – 46 liters volume | 3.6 kW | 230 V, 16 A
• CL 60-3 – 62 liters volume | 3.6 kW | 230 V, 16 A | up to 1,230 ± 30 °C
• CL 100-3 – 103 liters volume | 7.6 kW | 400 V, CEE16
• CL 140-3 – 149 liters volume | 9 kW | 400 V, CEE16
• CL 210-3 – 205 liters volume | 11 kW | 400 V, CEE16
• CL 280-3 – 271 liters volume | 15 kW | 400 V, CEE32
• CL 330-3 – 327 liters volume | 18 kW | 400 V, CEE32
• CL 440-3 – 430 liters volume | 22 kW | 400 V, CEE32
• CL 600-3 – 610 liters volume | 30 kW | 400 V, CEE63
• CL 100-5 – 103 liters volume | 7.6 kW | 400 V, CEE16
• CL 140-5 – 149 liters volume | 9 kW | 400 V, CEE16
• CL 210-5 – 205 liters volume | 11 kW | 400 V, CEE16
• CL 280-5 – 271 liters volume | 15 kW | 400 V, CEE32
• CL 330-5 – 327 liters volume | 18 kW | 400 V, CEE32
• CL 440-5 – 430 liters volume | 22 kW | 400 V, CEE32
• CL 600-5 – 610 liters volume | 32 kW | 400 V, CEE63

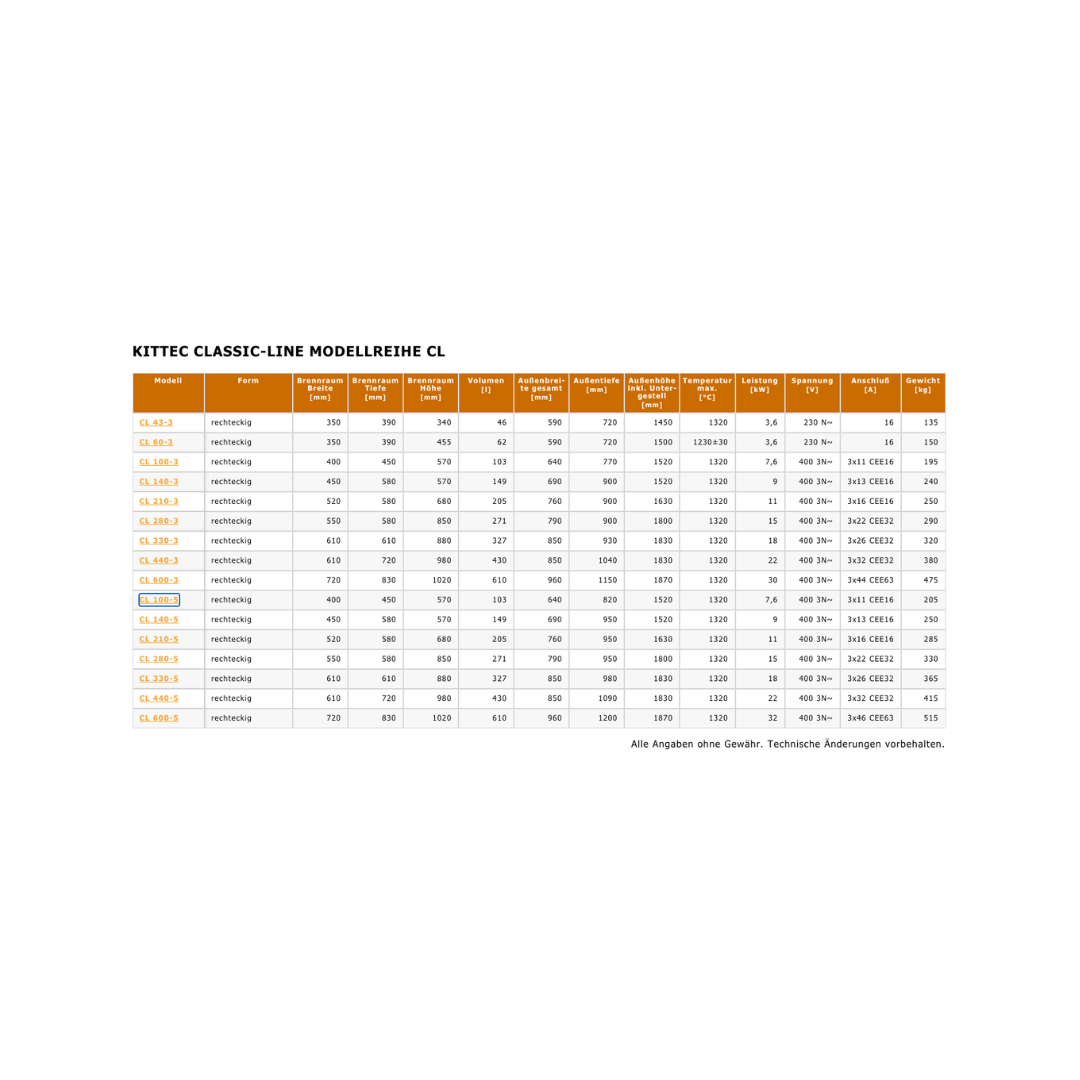

Unless otherwise stated, all models reach a maximum firing temperature of 1,320 °C. A detailed comparison of the technical specifications (inner dimensions, outer dimensions, weight) can be found in the table next to the product images.

Technical specifications

• Heating elements integrated and protected in grooved bricks
• Triple-layer insulation for good thermal insulation
• CL-3: three-sided heating from sides and bottom
• CL-5: five-sided heating from sides, rear wall, door, and bottom
• SiC ceiling plate for durability in high-temperature ranges
• Seamless, mortar-free brickwork reduces crack formation
• Stainless steel panels on sides, door, and lintel
• Powder-coated steel frame, available in 6 colors
• Bypass exhaust air system
• Adjustable stainless steel door latch, opening angle approx. 150°
• Removable leg pairs for easier transport
• Maximum firing temperature 1,230 ± 30 °C or 1,320 °C depending on the model

Scope of delivery

• KITTEC CL electric front-loading kiln in the selected size
• Basic equipment of the CL model series incl. TC 75 controller

The kiln can be equipped with further accessories depending on your requirements. Optional accessories are not included as standard unless explicitly stated in the selected variant.

Optional accessories

• ESP energy-saving package: Additional insulation reduces heat loss and power consumption – optionally available for the CL series.
• Firing set: Cordierite shelves & sillimanite props for multiple levels – optimal use of space in the kiln.
• Air intake slide: Regulates the kiln atmosphere and improves oxygen supply.
• Peephole in the body: Observe the firing process without opening – ideal for glaze control.
• Leveling feet & transport castors: For secure placement or flexible movement.
• Lid heating: Additional top heat, infinitely adjustable.
• Bottom heating: More uniform bottom heat for dense or heavy loads.
• Loading rack: Stainless steel frame for convenient stacking of kiln shelves.

Electronic controllers

The standard equipment comes with the TC 75. This controller is very well suited for typical ceramic firing curves and allows for the setting of start delay, controlled heating, end temperature, hold time, and controlled cooling.

For those who also require data logging, the kiln can be selected with a TC 95 (incl. WiFi and data logging). For more demanding firing programs, the TC 505, TC 705, and TC 707 are also available. Further controllers are available separately as individual spare parts.

Questions?

If you have questions about the right size, the correct heating method (-3 or -5), or suitable equipment, we are happy to help. Simply use the contact form at the bottom of this page.
