Bat System Ø 300 mm MDF Set

Bat system Ø 300 mm MDF set: large and small pieces, one base bat

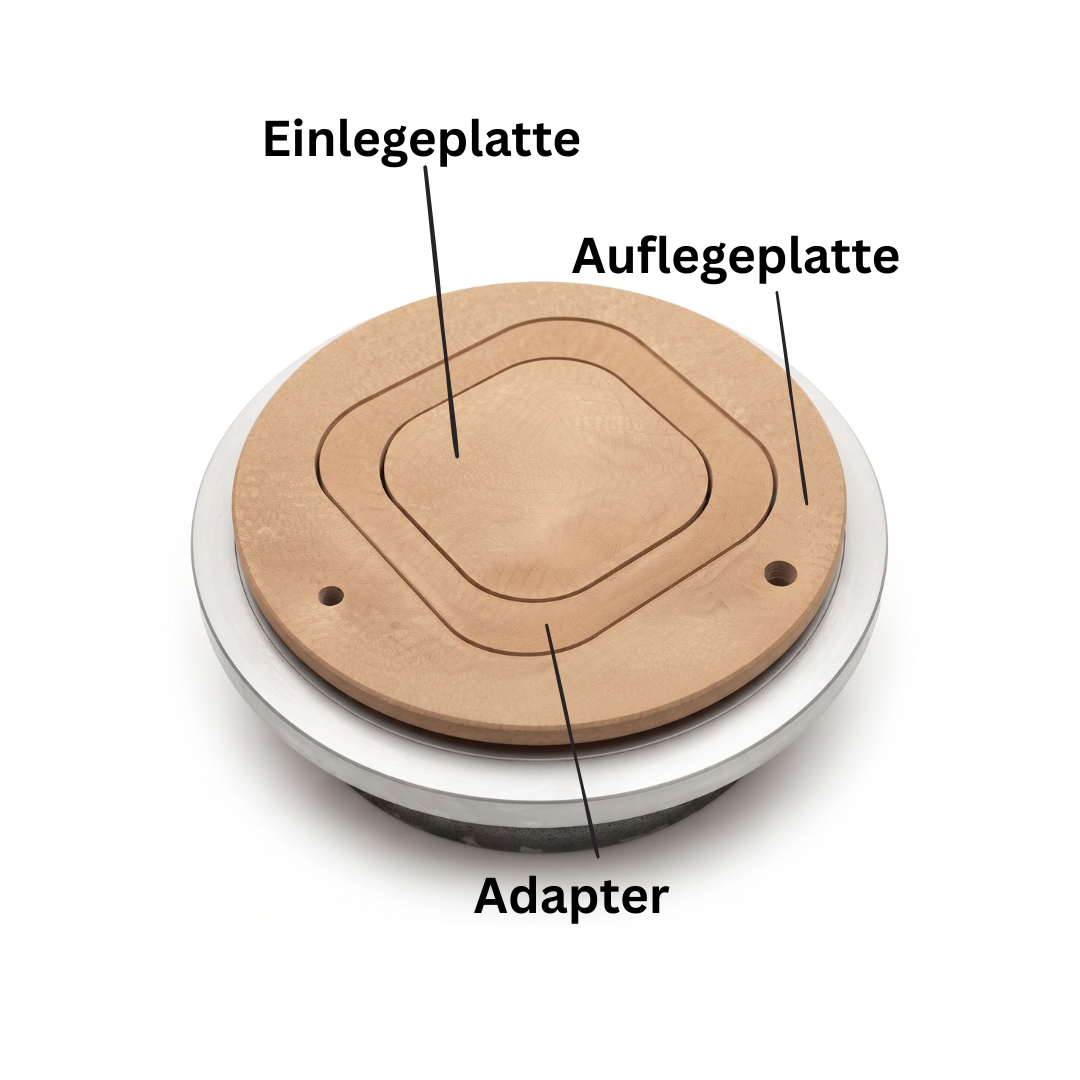

The Ø 300 mm bat system is the compact way to lift freshly thrown pieces off the pottery wheel without distorting them, whether a large plate or a small cup. The 300 mm base bat mounts directly on the wheel head with the 254 mm hole pattern (2 pins) that fits Shimpo. A recess in the base bat holds precisely fitting inserts in three sizes, so small pieces do not take up the entire working surface.

Features

• One base bat, three insert sizes: flexible for small and large pieces
• Lift off freshly thrown pieces directly on the insert without distortion
• 12 mm MDF for a flat, warp resistant working surface
• Tool free change of inserts via adapter rings
• Precise 254 mm hole pattern (10 inch, 2 pins), fits Shimpo pottery wheels

Technical data

• Material: MDF, 12 mm thick
• Base bat: Ø 300 mm, hole spacing 255 mm (10 inch, 2 holes)
• Inserts: 100 × 100 mm, 150 × 150 mm, 200 × 200 mm (each 6 mm thick)
• Adapters: 200 mm to 100 mm and 200 mm to 150 mm, for holding the smaller inserts in the 200 mm recess
• Set contents: 6 pieces

Applications

• Small batch production of cups, bowls and mugs on the small inserts
• Large plates and bowls directly on the 200 mm insert or the base bat
• Pottery classes with changing piece sizes
• Studios that want to manage without several complete bat systems

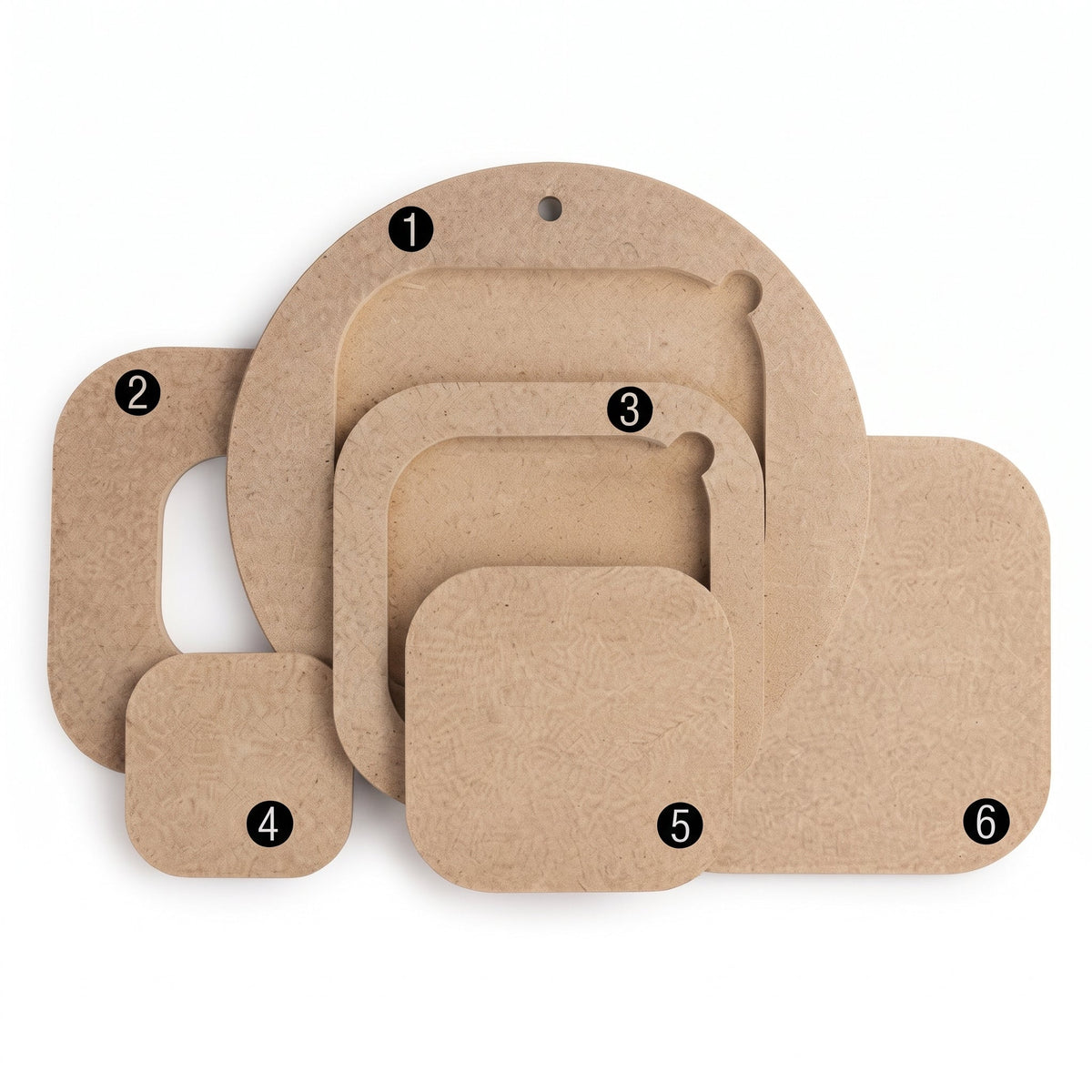

Scope of delivery

• 1x base bat Ø 300 mm (255 mm hole spacing)
• 1x insert 200 × 200 mm (fits directly into the recess, no adapter needed)
• 1x insert 150 × 150 mm and 1x adapter 200 to 150 mm
• 1x insert 100 × 100 mm and 1x adapter 200 to 100 mm

Fits

Developed for the Shimpo Whisper T pottery wheel and all Shimpo models with a 254 mm hole pattern (2 pins). You can add the system as an option when buying the Whisper T or order it here separately, for example as a replacement or second set.

Spare parts and expansion

Do you need more inserts or adapters at the same time for classes, or has a part gone missing? Under Spare parts and expansions for the bat system you can reorder every part separately: inserts and adapters in packs of 5, the base bat individually.
