Nabertherm Raku Kiln

Nabertherm RAKU Kiln 100, gas-fired, complete with burner and kiln furniture set

The RAKU 100 from Nabertherm brings a centuries-old Japanese firing technique into your workshop. During a Raku firing, you remove the glowing ceramic from the kiln while it is still hot and immerse it in materials such as leaves, straw, or sawdust. The reduction process creates beautiful color nuances and the distinctive crackle effect on the surface, which gives each piece a unique character. This is not just a firing process; it is a true experience.

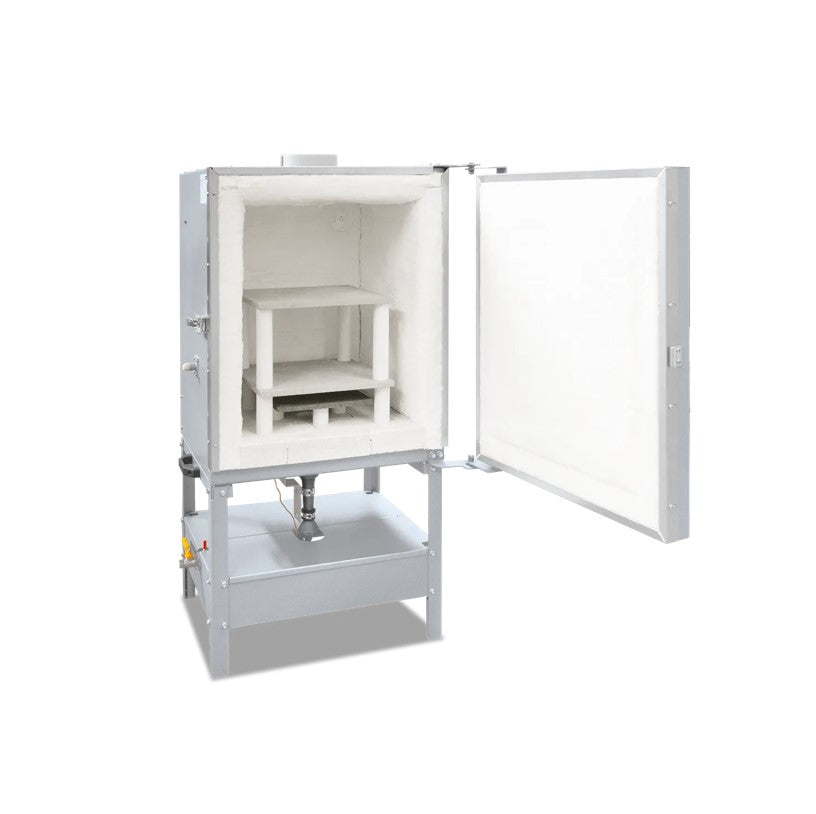

The RAKU 100 is delivered complete with a propane gas burner, temperature gauge including thermocouple, and a matching kiln furniture set. Like all Nabertherm kilns, it is handcrafted in Germany, supplied with a CE declaration of conformity, and comes with a 36-month warranty.

Which Nabertherm kiln is right for you?

An overview for quick reference:

• RAKU Kiln: gas-fired kiln for the traditional Japanese Raku firing technique. This is the product you are viewing.
• Ceramic Kilns: electric top-loaders and front-loaders for clay, ceramics, and glaze, up to 1340 °C. To the ceramic kilns
• Fusing and Glass Kilns: for glass fusing, glass bending, and glass beads. To the glass kilns

What makes Raku firing so special?

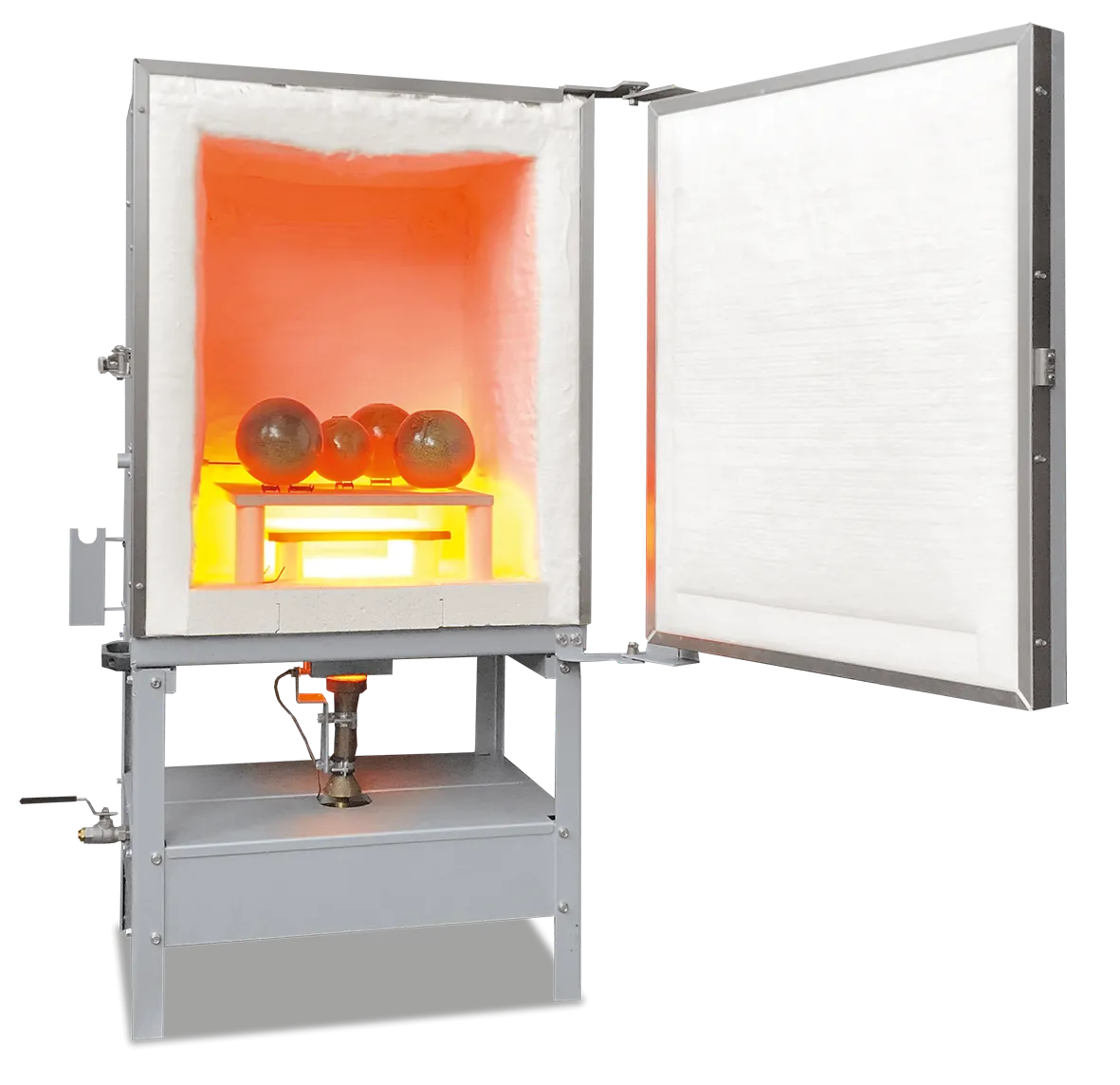

The clear and ergonomic front-loading design allows for an organized arrangement of your firing objects. The kiln door can be opened wide, even when hot, and away from the operator, with an opening angle of approximately 270 degrees. This allows you to remove the glowing pieces safely and comfortably. The gas burner is positioned under the kiln and transfers heat centrally to the load; the special flame guidance ensures good temperature uniformity.

Standard equipment

• Gas-fired via a 15 kW propane gas burner, mounted under the kiln and with a cylinder connection, for central heat transfer to the load
• High-quality, low-thermal-mass insulation for short heating times
• Special flame guidance for good temperature uniformity

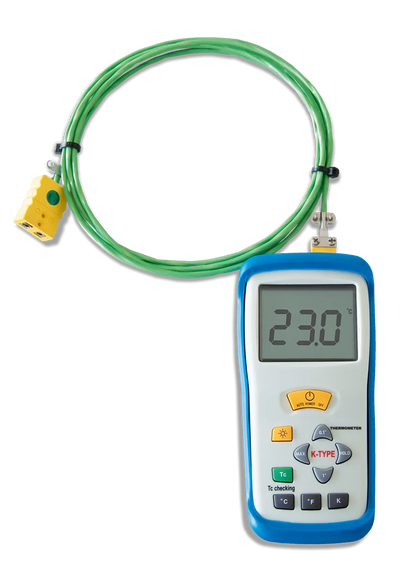

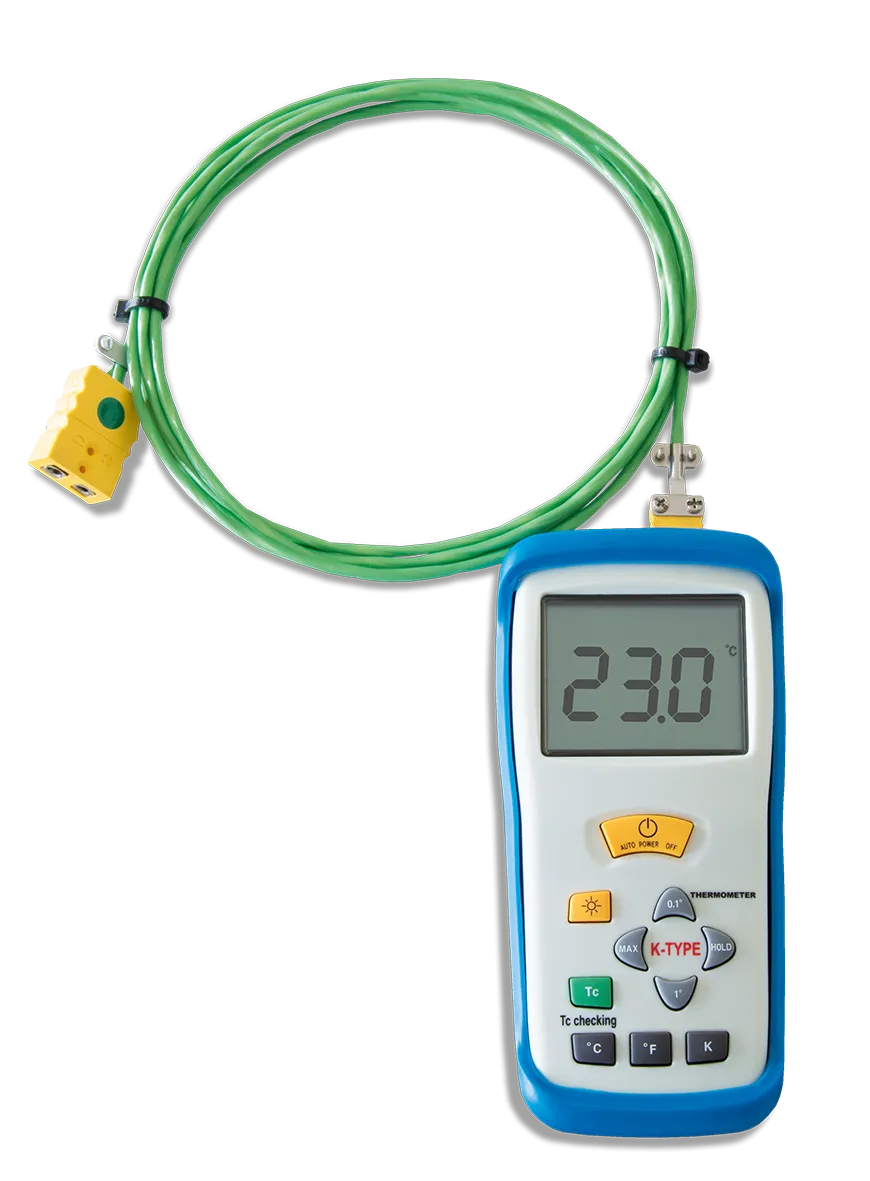

• Temperature gauge including thermocouple included in the scope of delivery
• Matching kiln furniture set included in the scope of delivery
• Adjustable door with an opening angle of approximately 270 degrees, can be opened effortlessly even when hot
• Environmentally friendly, long-lasting powder coating of the housing
• 36-month warranty, handcrafted in Germany

Technical data

• Maximum temperature: 1100 °C
• Inner dimensions (w x d x h): 350 x 350 x 350 mm
• Volume: 100 liters
• Outer dimensions (W x D x H): 800 x 650 x 1275 mm
• Maximum load weight: 10 kg
• Weight: 75 kg
• Heating: 15 kW propane gas burner

Optional accessories

• Heat-resistant gloves up to 700 °C: for the safe removal of hot fired goods. Highly recommended for Raku firing
• Tongs with curved jaws: for securely gripping and moving the glowing ceramic
• Installation and instruction: Setup at the place of use, including device instruction, available upon request

Delivery

All prices include packaging and transport insurance. Delivery is free to the first unloading point. The propane gas cylinder required for operation is not included in the scope of delivery and is available from specialist retailers.

Questions?

Would you like to get started with the art of Raku firing or would you like an individual offer? We are happy to advise you. Simply use the contact form below.
