Bentrup Controllers – From TC 66 to TC 707 for kilns, e.g., from Kittec
Bentrup Thermocomputers are high-quality, microprocessor-controlled kiln controllers for ceramics, glass, steel, and heat treatment. All models allow for individually adjustable firing curves with preheating time, controlled heating ramps, hold times, and controlled cooling.
All controllers share high reliability, overtemperature protection as overfire safety, and a Solar-Ready function for using PV power.
Models at a glance
TC 66
- 6 storable programs (5 pre-programmed)
- 2 heating ramps, hold time, cooling ramp
- 4-digit LED display
- PID Auto-Tune, error code display
- Compact controller for classic ceramic firings
TC 75 WU (WiFi + USB)
- 6 programs (5 pre-programmed)
- WiFi connection to SuperWise App
- Remote monitoring & email notification
- LED display
TC 95 WU (WiFi + USB + TFT)
- 20 programs with up to 20 segments each
- 2.8" TFT color display
- SuperWise App connectivity
- USB process data acquisition (CSV export)
- Ideal for glass fusing & complex glaze firings
TC 505
- 24 freely programmable programs + 6 fixed programs
- 2 heating ramps, 2 hold times, cooling phase
- Separate display for actual and setpoint temperature
- Power consumption display & operating hours display
- Power failure protection
TC 705
- Up to 99 programs storable
- 4.5" color LCD with graphical curve display
- Program start via real-time clock
- USB data export (CSV) & firmware updates
- PIN protection & keypad lock
- Power failure protection

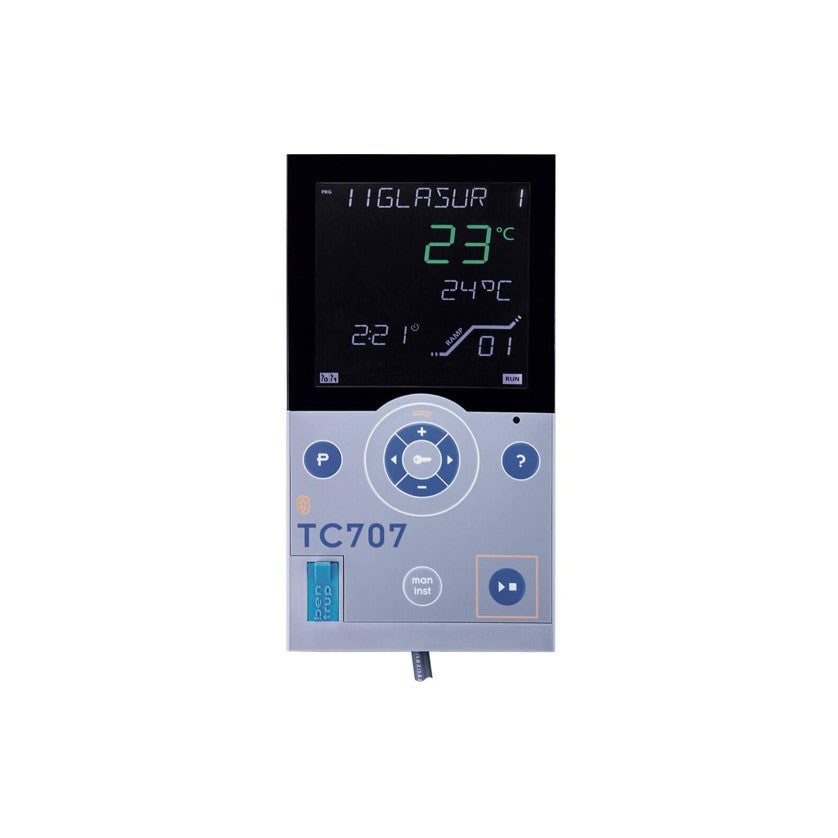

TC 707
- Up to 99 programs storable
- WiFi connection to SuperWise App
- Real-time start & online monitoring
- USB data export & documentation
- HAN15D connector version available
Common technical features
- Thermocouple Type S (PtRh-Pt)
- Mains supply 230 V, 50/60 Hz
- Connection cable approx. 170 cm
- Overtemperature protection
- Error and event codes
- 2-year manufacturer's warranty
Ordering information
For replacement orders, please state the manufacturer, kiln model, and year of manufacture so that the correct connector type (CPC14, HAN7D, HAN15D) can be supplied.
Note: Technical changes reserved. Distributed via Kitte.
Please do not hesitate to contact us if you have any questions about Bentrup controllers.
